Cooling is a challenge in the Twin Engine Delorean. There is very little extra room in the car, forcing some creative design decisions to successfully route the cooling circuit. The circuit starts at the outlet at the front engine, goes into the front fascia...

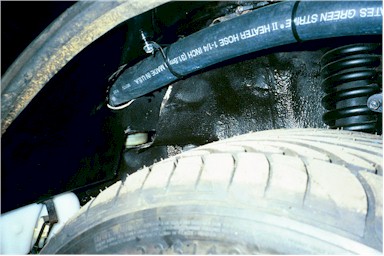

...under the wheelwell...

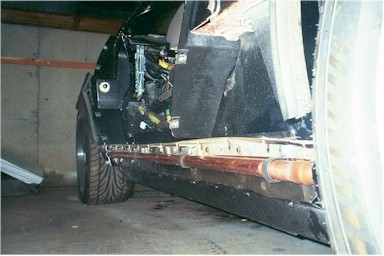

...through a copper pipe in the rocker panel...

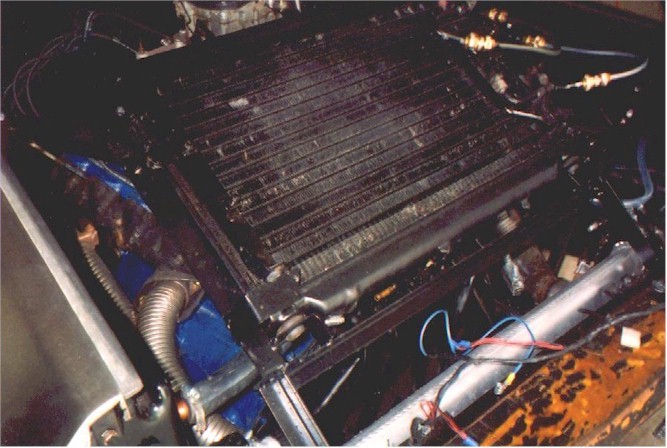

...to the radiator, mounted above the rear engine...

...and back to the engine via the other rocker panel and wheel well. Prior to starting the rear engine, it will be installed in the cooling circuit in series with the front engine. For now, the rear engine is bypassed.
